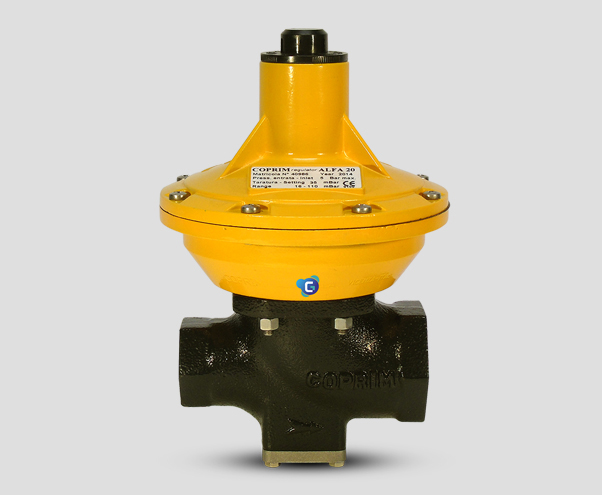

REGULATOR ALFA20BP

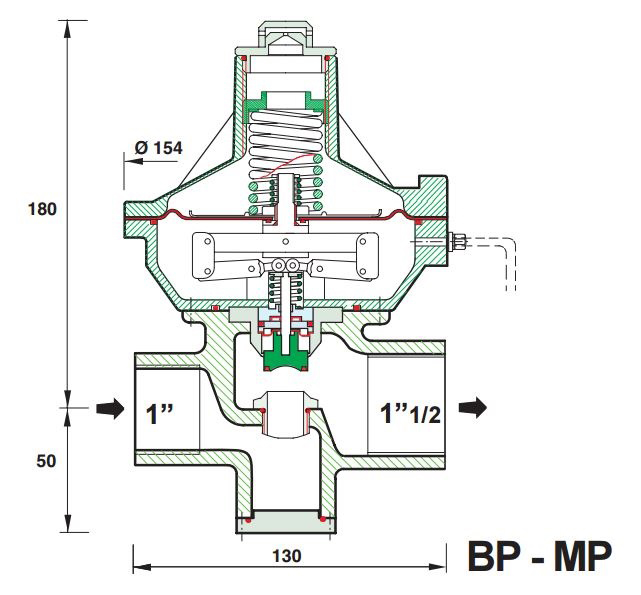

Regulator ALFA 20 BP is regulator for low pressure for methane with Pin=0.5-5bar and Pout=0.016-0.110 bar, inlet-1″, outlet-1″1/2, recommended to be with shut off valve BLC 10
| ALFA 20 BP – Flow rates table | ||||||||||||||||||
| outlet pressure (mbar) | inlet pressure (bar) | |||||||||||||||||
| 0,2 | 0,3 | 0.5 | 1 | 1,5 | 2 | 3 | 4 | 5 | ||||||||||
| 25 | 43 | 55 | 54 | 70 | 72 | 93 | 106 | 137 | 136 | 177 | 165 | 214 | 220 | 286 | 275 | 357 | 328 | 426 |
| 35 | 42 | 54 | 53 | 68 | 71 | 92 | 106 | 137 | 136 | 177 | 165 | 214 | 220 | 286 | 275 | 357 | 328 | 426 |
| 50 | 40 | 52 | 52 | 67 | 70 | 91 | 105 | 136 | 136 | 177 | 165 | 214 | 220 | 286 | 275 | 357 | 328 | 426 |
| 100 | 33 | 42 | 47 | 61 | 67 | 87 | 104 | 135 | 135 | 175 | 165 | 214 | 220 | 286 | 275 | 357 | 328 | 427 |
| CNG flow rate -Nm3/h | ||||||||||||||||||
This products is suggested to be used in cooperation with the following products:
Shut off valve BLC 10
