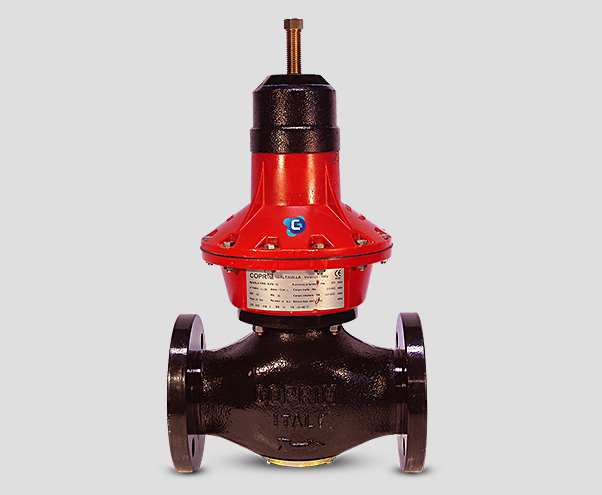

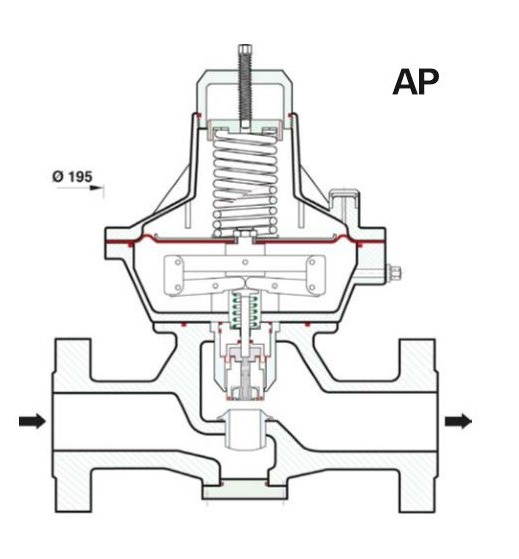

REGULATOR ALFA 40 AP

Regulator ALFA 40 AP is regulator for low pressure for methane with max Pin=18 bar and Pout=0.31-4 bar, inlet-DN40, outlet-DN40, recommended to be with shut off valve BLC 40

ALFA 40 AP – Flow rates table
outlet pressure (bar)	inlet pressure (bar)
outlet pressure (bar)	2		3		4		5		8		10		12-18
0,50	488	634	670	871	841	1093	1009	1311	1017	1323	1017	1323	1017	1323
1	444	577	651	846	834	1084	1008	1310	1357	1764	1357	1764	1017	1764
1,50	348	452	611	794	814	1058	998	1297	1514	1968	1696	2205	1696	2205
2			540	702	777	1010	977	1270	1513	1966	1851	2406	2035	2646
3					622	808	888	1154	1489	1935	1844	2397	2714	3528
4							696	904	1433	1862	1816	2360	2861	3719
CNG flow rate -Nm3/h
